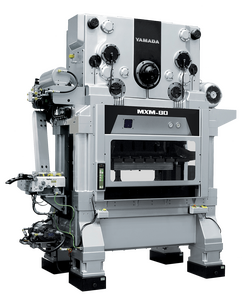

Alpha Series
Crank-Motion Fixed Stroke – Reliable & Affordable
The ALPHA Series is YAMADA’s best-selling crank-motion fixed stroke press, renowned for reliability, simplicity, and exceptional value. With dual plungers and four slide guides, it delivers precise, high-speed stamping across a wide range of applications, including connectors, electrical components, washers, and motor lamination. Its robust cast-iron frame ensures optimal process stability and minimal bed distortion. Like all YAMADA presses, the ALPHA Series features automatic oil temperature control (Heat & Cool System), providing consistent bottom-dead-center accuracy and perfect parts from the very first stroke.
- Crank-Motion Drive
- Fixed Stroke
- Reliable Bottom-Dead-Center Accuracy
- Robust Cast-Iron Frame
- Outstanding Value
Press Force
10
300kN
3300kN
3500
Stroke Length
1
10mm
60mm
100
Bolster Length
100
500mm
2000mm
3500
Bolster Width
1
400mm
1000mm
2000
Maximum Speed
10
400spm
2400spm
3500
/ Specifications
Technology That Powers
Precision and Performance
- High precision & speed
- with Link Motion drive
- Automatic stroke adjustment
- by digital preselection input
- Reduced vibrations & optimized stability
- at bottom dead center
- Heat & Cool-System
- for consistent performance and material stability
- Dynamically balanced eccentric shaft
- for precise machining
- 12" color touchscreen control
- for easy operation
- Robust GGG-50 press body
- for maximum durability
- Quick tool change
- with storage for up to 1000 tool data
- Multiple guide for the ram (2 pressure columns, 4 slide guides)
- for precise stability
- Standard 2-channel press force monitoring
- for maximum process reliability
/ Alpha-Series
All models in the Alpha series
View:
- Cards
- Table
Filter:
Press Force kN
Reset
Slide Width mm
Reset
Stroke Length (max.) mm
Reset
Press ForcekN
Stroke Length (min.)mm
Stroke Length (max.)mm
Stroke Type
Drive
Maximum Speedspm
Bolster Lengthmm
Bolster Widthmm
Slide Lengthmm
Slide Widthmm
Die Height (min.)mm
Die Height (max.)mm
Adjustment Rangemm
Strip Inlet Widthmm
Machine Heightmm
Weightt
/ Facilities
Heat & Cool System
Perfect Parts from the First Stroke
Precision starts at the very first stroke. Yamada’s Heat & Cool system keeps the press at a constant operating temperature — from the first part to the last. Before production begins, the system automatically heats the press frame and slide to the optimal temperature using a built-in timer, so the machine is ready when production starts — without any loss of time. Once running, a circulating oil loop maintains the temperature within ±1 °C through integrated heating and cooling.
The result: consistent part quality, stable accuracy, and less scrap — without any additional cost. The Heat & Cool system comes standard with every Yamada press, ensuring perfect performance right from the start.
- 24" Color Touchscreen Control
- YAMADA 24" touchscreen with 16 selectable languages, stores 1000 tool datasets (stroke height, stroke rate, tool installation height, feed parameters, tool designation, specific tool data).
- Heat & Cool System
- Automatic oil temperature regulation for consistent performance.
- Dynamic Slide Balancing
- Dynamically balanced slide for smooth, precise operation.
- Digital Angle & Stroke Rate Display
- Real-time monitoring of angle and stroke rate.
- Main Drive with Forward/Reverse
- Flexible operation with forward and reverse functionality.
- Digital Slide Height Display
- 0.01 mm accuracy with motorized adjustment and hydraulic clamping; includes Quick Stroke Lift (QSL) with auto-repositioning.
- YAMADA Active Control
- Automatic correction of slide penetration depth for precision.
- Dynamic Vibration Protection (D.V.P.)
- Vibration-damping machine feet for enhanced stability.
- Programmable Digital Outputs
- 10 programmable 24V outputs (cams) for customized control.
- Safety Inputs/Outputs
- Instant-stop and top-dead-center stop inputs, plus “clutch engaged” output for peripherals.
- YAMADA Press Force Monitoring
- Dual-channel system with piezo sensors on corner columns, displaying total and per-channel force, with tool protection via max/min force settings.
- Digital Counters & Meters
- 9-digit piece counter (up/down), ammeter, and operating hours counter.
- Digital Speed Display
- Real-time press speed monitoring.
- Oil & Air Pressure Monitoring
- Displays with automatic oversight for reliability.
- Two-Hand Operation Hardware
- Tactile buttons for two-hand operation (tip/micro-tip only with closed door), emergency stop, and top-dead-center stop.
- External Safety Signals
- 2 instant-stop and 2 top-dead-center stop inputs.
- Controlled Air Blow-Off
- Cam-operated blow-off with 4 cam outputs, plus constant air connection and blow-off gun.
- Lubrication Oil Channel
- Collection tray with 1.6L capacity for oil drainage.
- Safety Doors
- Front and rear safety doors for secure operation.
- Work Area Lighting
- Integrated illumination for enhanced visibility.
- Electrical Cabinet Cooling
- Cooling system for reliable electronics performance.
