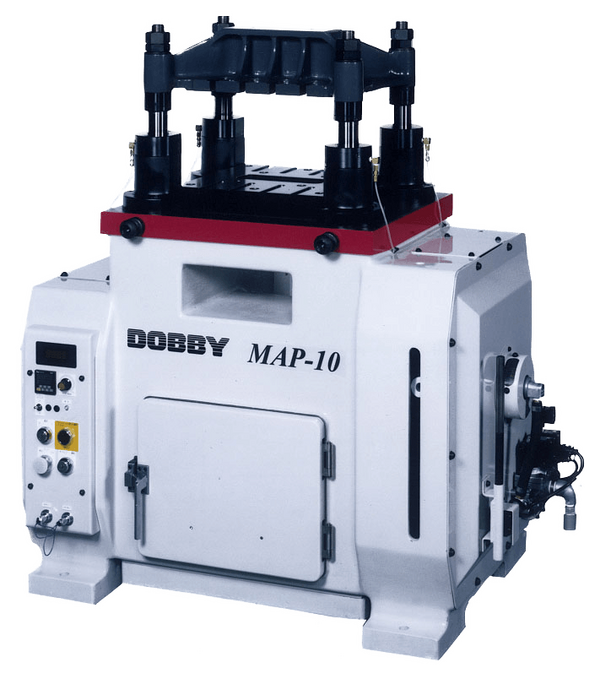

MAP Series
High precision under drive press
MAP Series crank-motion presses with underdrive technology deliver precise, reliable stamping for progressive and blanking tools. Exchangeable bolster modules provide flexible setups for diverse applications, while the lower-mounted eccentric drive ensures maximum cleanliness for medical and food processing.
- Ensures clean operation in hygiene-sensitive environments.
- Quickly adapts to different tools and applications.
- Maintains precise slide motion for accurate stamping.
- Handles both progressive and full-cut dies reliably.
- Saves space without compromising stability or performance.
Press Force
10
100kN
300kN
3500
Stroke Length
1
20mm
50mm
100
Bolster Length
100
350mm
700mm
3500
Bolster Width
1
300mm
640mm
2000
Maximum Speed
10
500spm
600spm
3500
/ Specifications
Innovative technologies &
precision in the process of stamping
- Crank-Motion Under-Drive
- Provides high-speed stamping while maintaining smooth and controlled slide motion.
- All Liquids Contained Below the Bolster
- Ideal for hygiene-sensitive applications
- Lightweight yet extremely hard material reduces moving mass for optimal stability around bottom-dead-center.
- Ultra-High-Speed Precision
- Maintains exceptional accuracy even at maximum stroke rates.
- Reduced Vibrations
- Floating crankshaft bearings and balanced construction minimize vibration and noise.
- 24" Touchscreen Control
- Intuitive interface for precise, seamless operation.
- High Torque Clutch & Brake
- Ensures rapid acceleration/deceleration while maintaining safe, controlled operation.
- Integrated Press-Force Monitoring
- Monitors press force for consistent results and operator safety.
- Durable GGG-50 Press Body
- Robust construction for maximum structural stability under extreme operational speeds.
- Dynamically Balanced Eccentric Shaft
- Precision-machined to eliminate vibration at ultra-high speeds.
- Heat & Cool System
- Preheats machine to ensure perfect parts from the first stroke.
/ MAP-Series
All models in the
MAP-Series
View:
- Cards
- Table
Filter:
Press Force kN
Reset
Slide Width mm
Reset
Stroke Length (max.) mm
Reset
Press ForcekN
Stroke Length (min.)mm
Stroke Length (max.)mm
Stroke Type
Drive
Maximum Speedspm
Bolster Lengthmm
Bolster Widthmm
Slide Lengthmm
Slide Widthmm
Die Height (min.)mm
Die Height (max.)mm
Adjustment Rangemm
Strip Inlet Widthmm
Machine Heightmm
Weightt
/ Facilities
Heat & Cool System
Perfect Parts from the First Stroke
Precision starts at the very first stroke. Yamada’s Heat & Cool system keeps the press at a constant operating temperature — from the first part to the last. Before production begins, the system automatically heats the press frame and slide to the optimal temperature using a built-in timer, so the machine is ready when production starts — without any loss of time. Once running, a circulating oil loop maintains the temperature within ±1 °C through integrated heating and cooling.
The result: consistent part quality, stable accuracy, and less scrap — without any additional cost. The Heat & Cool system comes standard with every Yamada press, ensuring perfect performance right from the start.
- 24" Color Touchscreen Control
- YAMADA 24" touchscreen with 16 selectable languages, stores 1000 tool datasets (stroke height, stroke rate, tool installation height, feed parameters, tool designation, specific tool data).
- Heat & Cool System
- Automatic oil temperature regulation for consistent performance.
- Dynamic Slide Balancing
- Dynamically balanced slide for smooth, precise operation.
- Digital Angle & Stroke Rate Display
- Real-time monitoring of angle and stroke rate.
- Main Drive with Forward/Reverse
- Flexible operation with forward and reverse functionality.
- Digital Slide Height Display
- 0.001 mm accuracy with motorized adjustment and hydraulic clamping; includes Quick Stroke Lift (QSL) with auto-repositioning.
- YAMADA Active Control
- Automatic correction of slide penetration depth for precision.
- Dynamic Vibration Protection (D.V.P.)
- Vibration-damping machine feet for enhanced stability.
- Programmable Digital Outputs
- 10 programmable 24V outputs (cams) for customized control.
- Safety Inputs/Outputs
- Instant-stop and top-dead-center stop inputs, plus “clutch engaged” output for peripherals.
- YAMADA Press Force Monitoring
- Dual-channel system with piezo sensors on corner columns, displaying total and per-channel force, with tool protection via max/min force settings.
- Digital Counters & Meters
- 9-digit piece counter (up/down), ammeter, and operating hours counter.
- Digital Speed Display
- Real-time press speed monitoring.
- Oil & Air Pressure Monitoring
- Displays with automatic oversight for reliability.
- Two-Hand Operation Hardware
- Tactile buttons for two-hand operation (tip/micro-tip only with closed door), emergency stop, and top-dead-center stop.
- External Safety Signals
- 2 instant-stop and 2 top-dead-center stop inputs.
- Controlled Air Blow-Off
- Cam-operated blow-off with 4 cam outputs, plus constant air connection and blow-off gun.
- Lubrication Oil Channel
- Collection tray with 1.6L capacity for oil drainage.
- Safety Doors
- Front and rear safety doors for secure operation.
- Work Area Lighting
- Integrated illumination for enhanced visibility.
- Electrical Cabinet Cooling
- Cooling system for reliable electronics performance.
/ Service
Precision is more than just the product
Our high-speed presses play a critical role in producing the finest stamped metal components – from smartphones and connectors to highly efficient motor cores and bipolar plates. True quality extends beyond the machine itself, encompassing the comprehensive service, support, and expertise that ensure consistent performance and reliability for manufacturers worldwide.
Each YAMADA press is tailored to customer specifications. Our engineers collaborate closely with our customers to push the boundaries of stamping technology in terms of precision, speed, and efficiency.
We offer trials in our facilities, allowing customers to experience the quality and performance of YAMADA presses firsthand and gain confidence in their reliability and consistency.
Customer satisfaction is our top priority. YAMADA provides fast, responsive service and support, ensuring that our presses operate reliably and efficiently, giving manufacturers worldwide the confidence they need in every production environment.
YAMADA presses are designed for easy operation. We provide training at customer sites during installation and also offer courses at our facilities, ensuring users are fully confident with their machines.
